Description
Application:

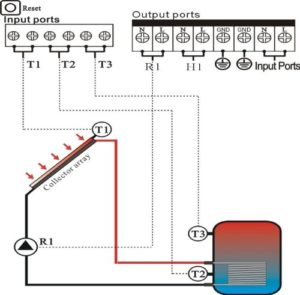

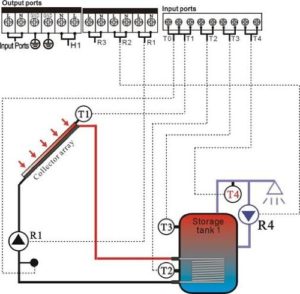

It is used for the solar hot water heating system. 1 collector array * 1 storage tank * 1 pump and auxiliary heating
Main technical knowledge

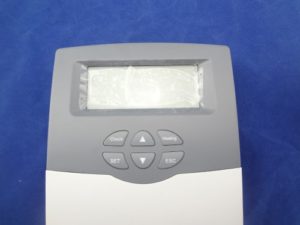

Appearance of controller: 187mm*128mm*46mm
Power provide: AC110V+/-10%
Power consumption: lower than 3W
Accuracy of temperature measuring: +/-2 Cel. degree
Vary of collector temperature measuring: -10-220 Cel. degree
Vary of tank temperature measuring: 0-110 Cel. degree
Appropriate power of pump: 3, lower than 600W
Inputs: 1* Pt1000 sensor (lower than 500 Cel. degree) for collector (silicon cable less than280 Cel. degree),
2 * NTC10K, B3950 sensor (lower than 135 Cel. degree) for tank, (PVC cable lower than 105 Cel. degree),
Outputs: 1 relays, for circulation pumps
1 relay for electrical heater
Ambient temperature: -10-50 Cel. degree Main purposes
1.Main menu DT O & DT F Temperature difference serve as
2.Main menu-THET timing heating
3.TEMP Temperature main menu
4.EM Emergency collector temperature (emergency switch-off temperature of collector)
5.CMX Most restricted collector temperature (collector cooling serve as)
6.CMN low temperature protection of collector
7.CFR frost protection of collector
8.SMX Most temperature of tank
9.REC Tank re-cooling serve as
10.Celsius and Fahrenheit temperature transferring
11.HND Manual mode
12.PASS Password setting
13.LOAD Recovery to factory setting
14.Manual heating
15.Temperature question serve as
16.Protection serve as
18.Anti-dry heating Protection
19.Screen protection

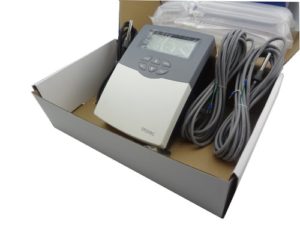

110v controller for the solar hot water heating system Appropriate for 1 collector array * 1 storage tank * 1 pump and auxiliary heating
Appearance of controller 187mm*128mm*46mm
3 Temperature sensors (1 x pt1000, 2 x NTC10K)
Accuracy of temperature measuring: +/-2 Cel. Degree
Vary of collector temperature measuring: -10-220 Cel. degree Vary of tank temperature measuring: 0-110 Cel. Degree
